ELV INFRASTRUCTURE

Data & Voice Network Infrastructure

Enterprise data cabling, VoIP voice networks, rack distribution panels, and high-density network switching.

Request Consultation → Book Site Survey

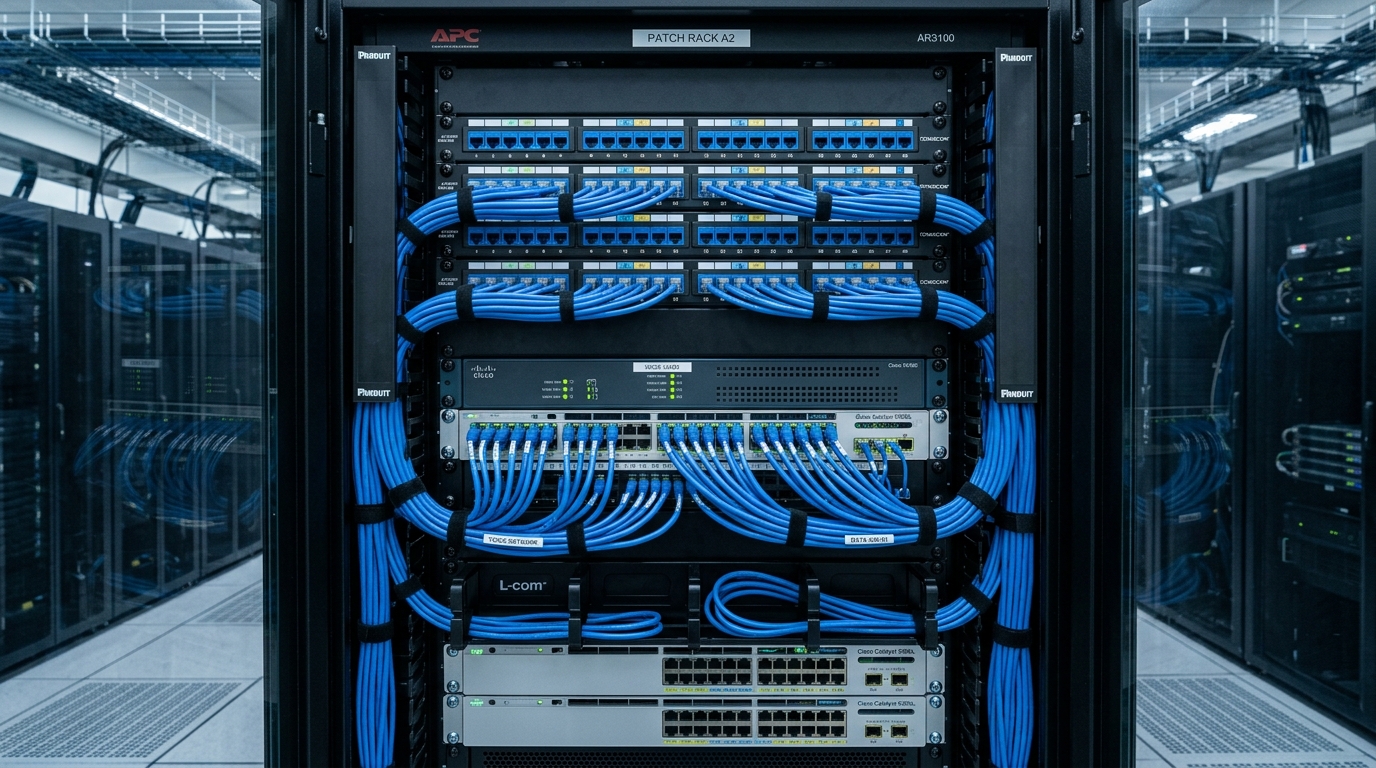

Data & Voice Network Infrastructure - Bayosa Projects LLP

Engineering Scope & Implementation

Integrating corporate data networks with IP telephony (VoIP) infrastructure requires structured dual-drop cabling, dedicated voice VLAN segmentation, and high-density distribution frames. Bayosa Projects LLP engineers unified data and voice networks designed for crystal-clear voice communication and high-speed data transmission.

We deploy dual-port faceplates at workstation locations, high-density copper patch panels, IP PBX voice gateways, and managed PoE network switches from Cisco and Netgear. Quality of Service (QoS) traffic prioritization rules are configured across network switches to ensure voice packets maintain absolute priority over data downloads.

Testing protocols include dual-drop Fluke cabling verification, VoIP call clarity jitter audits, PoE power budget verification under full load, and voice VLAN isolation tests. Bayosa Projects LLP delivers complete patch panel labeling matrices, IP addressing schematics, and structured AMC maintenance support.

Key Technical Specifications Handled

✔ Dual-Port Workstation Faceplate Drops

Standardized dual Cat6A drops supplying dedicated data connectivity and IP desktop phone links.

✔ Managed PoE Switching & QoS Routing

PoE+ network switches featuring Quality of Service (QoS) prioritization for jitter-free VoIP calls.

✔ IP PBX Voice Gateway Integration

Unified IP telephony voice gateway connections linking SIP trunks to internal desktop IP extensions.

✔ Main & Intermediate Distribution Frames

Structured MDF/IDF rack frames organizing copper patch cords, voice blocks, and network switches.

FAQ & TECHNICAL CLARIFICATIONS

Frequently Asked Questions (6 Items)

Factual engineering clarifications regarding technical specifications, testing certifications, OEM compatibility, and execution timelines.

We install standardized dual-gang faceplates with color-coded keystone jacks (blue for high-speed data, white for IP voice drops) terminated back to modular patch panels.
We configure Layer 2 CoS and Layer 3 DSCP traffic prioritization rules on network switches, ensuring voice packets are processed with top priority over bulk data downloads.
Yes. We bridge legacy or cloud IP PBX voice gateways with new structured copper patch panels and switch voice VLANs for seamless desk phone connectivity.
MDF racks house core switches, routers, and fiber LIUs, while IDF floor racks house edge PoE switches and horizontal copper patch panels linked to the MDF via optical backbones.
Yes. Every patch panel port and wall faceplate is labeled according to TIA-606-B identification standards, accompanied by detailed CAD floor port maps.
AMC coverage includes periodic switch port audits, patch cable dressing, switch firmware security updates, and rapid port replacement for damaged cabling runs.

Discuss Your Data & Voice Network Infrastructure Requirement

Connect with Founder Neeraj Kumar and Bayosa's engineering integration specialists to design and deploy robust technology systems.
